EMX Photoeye Mounting Post

EMX PhotoeyeVault or 325-POST-2 Photoeye Mounting Post

A stylish, protective housing for EMX photoeyes, the PhotoeyeVault delivers durability and design. Its bollard form factor conceals and protects your sensors, ideal for settings where both function and appearance matter.

Two purpose-built mounting options that shield EMX sensors from environmental and mechanical damage — each with a clean, professional finish.

EMX offers two high-quality mounting options for photoeyes — Vault and Utility 325-POST-2 — designed to suit different site requirements, aesthetics, and installation preferences. Both products protect EMX sensors from environmental and mechanical damage while providing a clean, professional appearance.

Key Benefits

Secure enclosure shields photoeyes from vandalism, weather, and impact.
Two-piece design (front & rear vault) with quick 8-screw assembly.
Internal mounting patterns for all major EMX photoeyes.
Adjustable mounting via slotted base plate.
Blends into architectural environments.

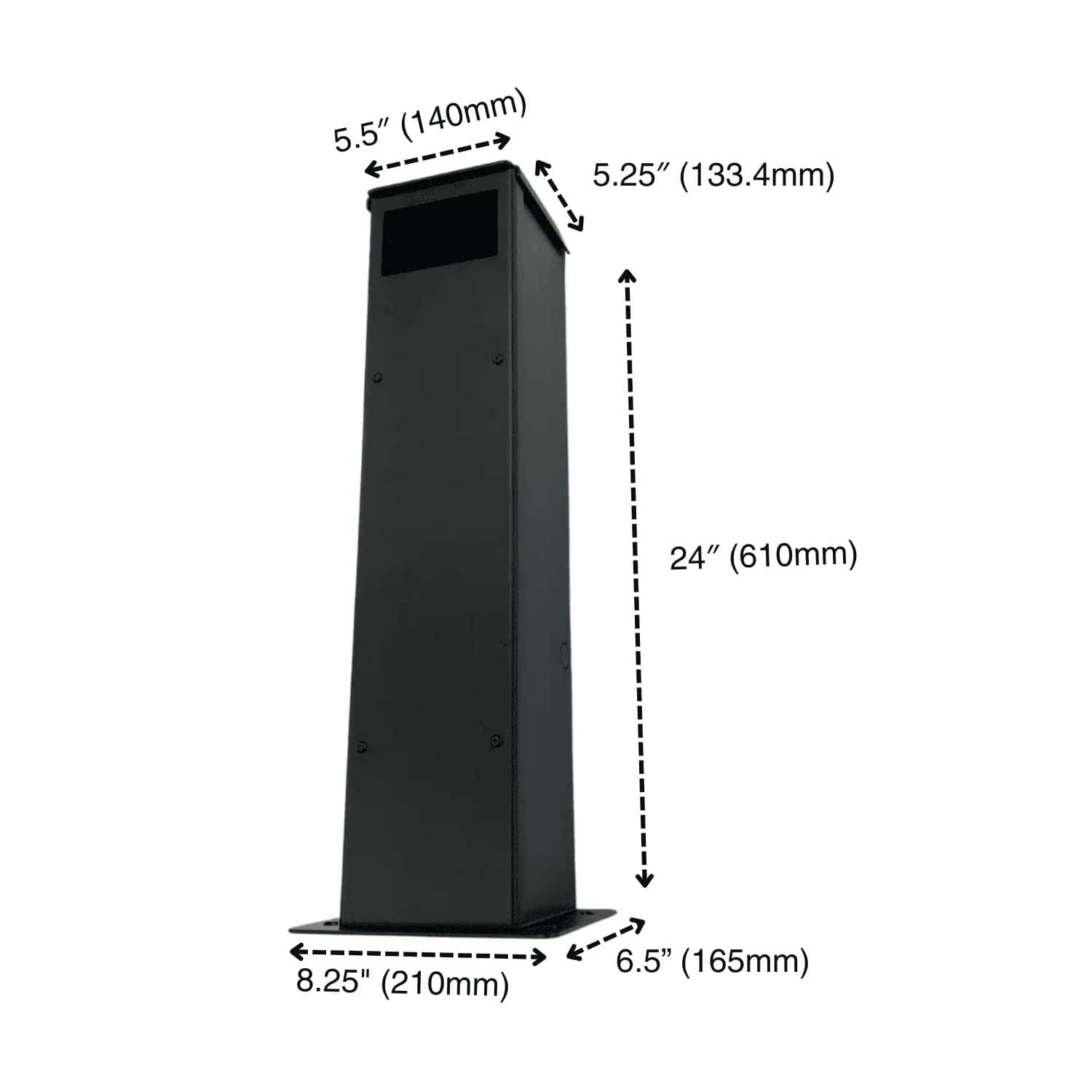

Key Specifications (Vault Model)

• Construction:11-gauge (.120″) steel
• Mounting Style: Fully enclosed, two-piece bollard
• Appearance: Architectural / security-style bollard

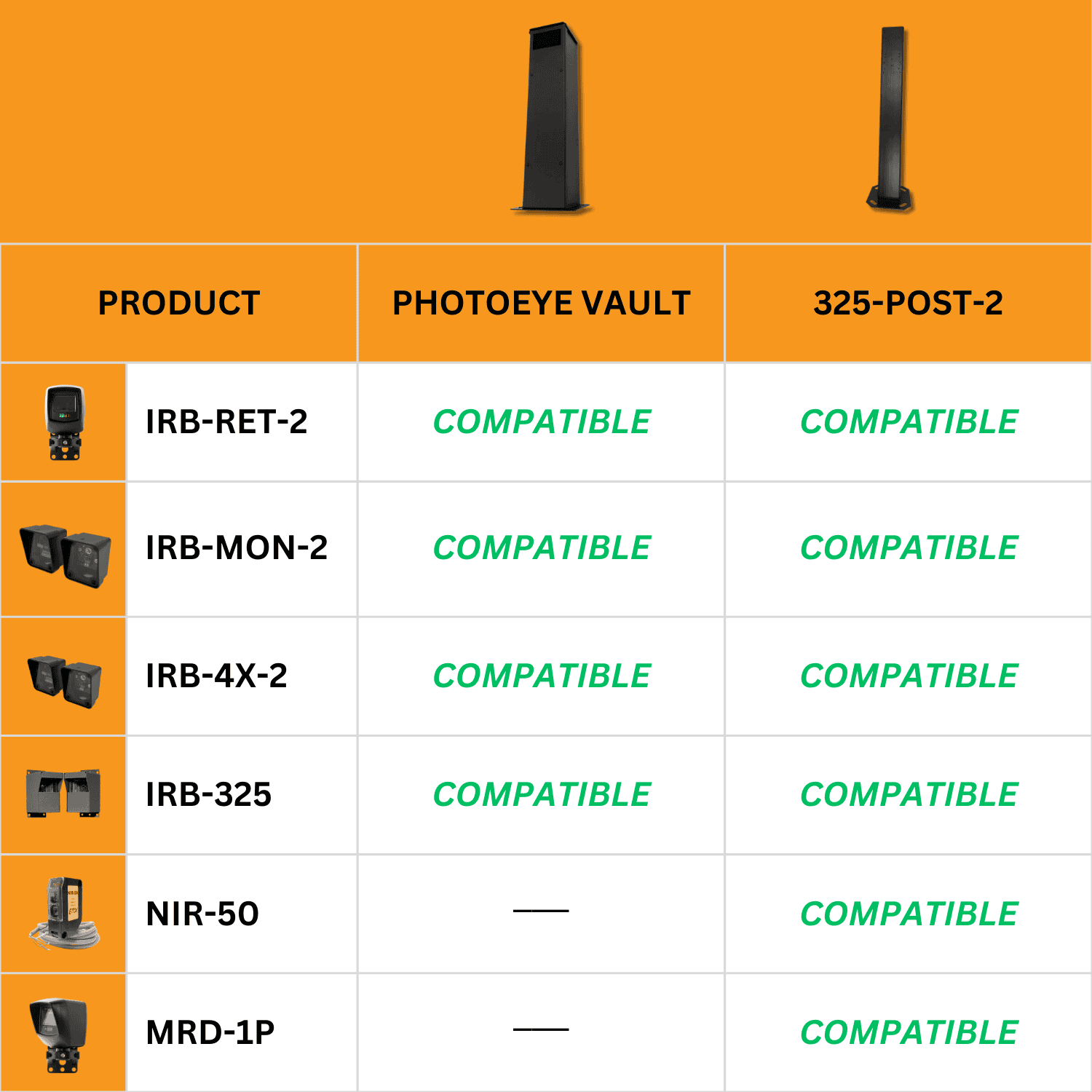

• Sensor Compatibility: IRB-RET-2, IRB-MON-2, IRB-4X-2, IRB-325
• Wire Access: Bottom or side
• Installation: Slotted base plate for angle adjustment
• Applications: High-end, visible areas

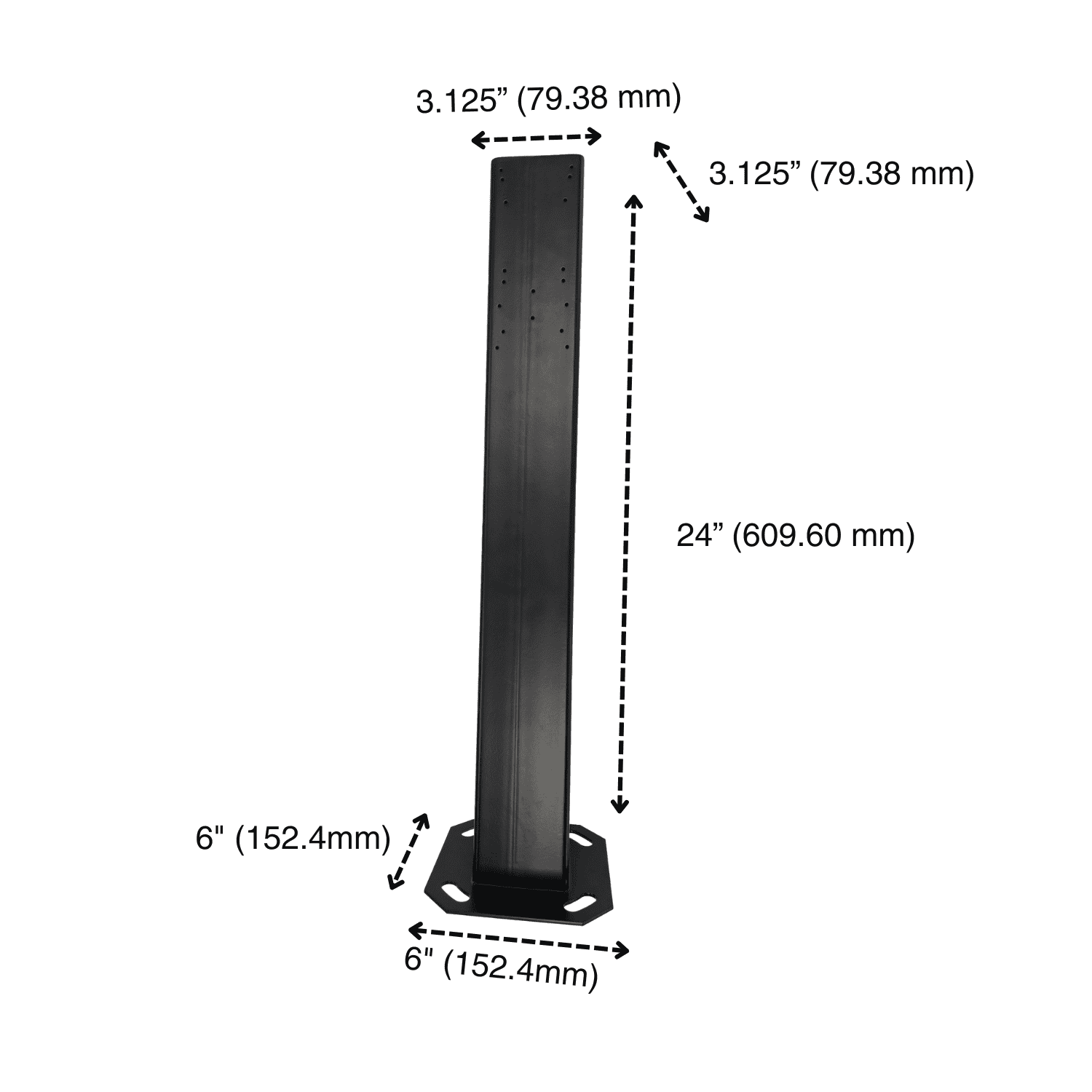

Key Specifications (Utility Model)

• Construction: .125″ steel
• Mounting Style: Standard square post with drill indents
• Appearance: Traditional square post
• Sensor Compatibility:IRB-RET-2, IRB-MON-2, IRB-4X-2, IRB-325, NIR-50, and MRD-1P
• Wire Access: Requires drilling (user-defined)
• Installation: Pre-indented mounting locations
• Applications: Utility-focused installs

DOWNLOAD

• Cut Sheet
• Manual
